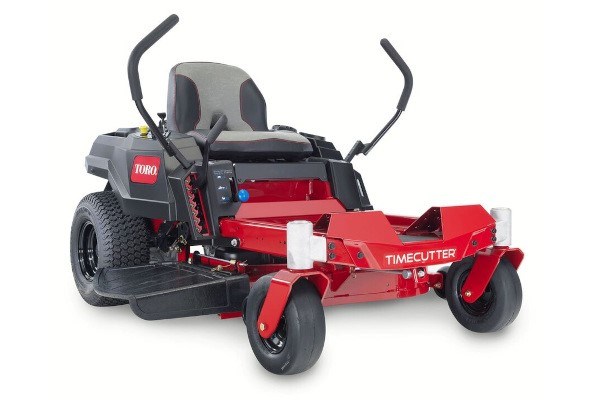

34 in. (86 cm) TimeCutter® Zero Turn Mower (77301)
Overview:
The ultimate zero-turn mower for tackling big lawn jobs while also fitting in small spaces. This small but mighty TimeCutter with powerful 22 HP* V-Twin Briggs & Stratton engine and 34" IronForged® deck allows you to create both a beautiful lawn and have more time than ever to enjoy it. The mower's compact design makes for easy storage. Toro stands behind its mowers with a 3-year, 300-hour commercial engine limited warranty.† And as a Toro owner you'll have access to more than 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Compact but Robust
The mower's compact design and 34" deck means you'll have no trouble mowing in tight spaces or traveling between some gates.
IronForged® Deck
Toro IronForged® fabricated deck ensures years of reliability and top performance.
Smart Speed® Technology
Take control over your mowing speed, while never sacrificing blade tip speed.
Step-Through Front End
Getting on and off the mower to pick up yard debris and other obstacles is a breeze with a step-through front end.
Storage Cubby
Now there's a convenient and safe space in your under-seat cubby to store important items.
Handcrafted Seat
Ride in style with a handcrafted seat that provides the ultimate in padding and back support.
Pro DNA
Commercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
Specifications
| Air Filter | Standard Briggs & Stratton Air Cleaner |
| Anti Scalp Wheels | 2 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Design | 0.164 in. / 0.417 cm Steel with Blade Stiffner |
| Blade Tip Speed | 18,179 ft/min / 5,541 m/min |
| Box Dimensions | 82.0 in. x 49.0 in. x 35.0 in. / 208.3 cm x 124.5 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Caster Tires | 11 in. x 4 in. - 5 in. Pneumatic |
| Clutch | Electromagnetic |
| Cooling System | Air Cooled |
| Crankshaft | 1" (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 34 in / 86 cm |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 18 in. x 6 in. - 8 in. (45.7 cm x 15.2 cm - 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 22 hp Briggs and Stratton EXI 724cc |
| Engine Brand | Briggs and Stratton |
| Engine Displacement (cc) | 724 cc |
| Engine Horsepower | 22.0 hp |
| Engine Power (kW) | 16.4 kW |
| Foot Operated Height of Cut | Optional |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Fuel Capacity | 3 gal. / 11.4 L / 12 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.5 - 4.5 in. / 3.8 - 11.4 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Dampeners | Yes, Non-Cavitating |
| Hydraulic Drive | Standard |
| Number of Blades | 2 |
| Product Type | TimeCutter |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 16" Handcrafted |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Dual Wrap Around Levers |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2100 |
| Washout Port | Standard |
| Weight | 496 lbs / 225 kg |
Disclaimer
*22 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Briggs & Stratton®. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.†See retailer for complete warranty details.‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
