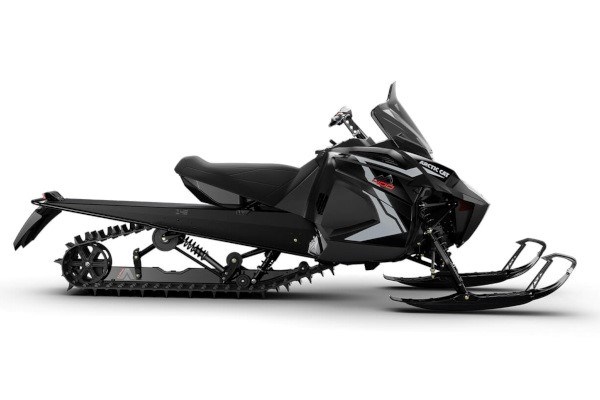

M 400 ALPHA ONE
Price: $9,999.00
Overview:
MID-SIZE. MAJOR FUN.
- 397cc C-TEC2 Single Cylinder EFI Engine
- AMS™ 37 Front Suspension
- Hydraulic Twin Tube Shocks
- ALPHA ONE Suspension
- 15” x 146” x 2” Challenger Track
- Electric Start
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Value Your Trade
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Request Brochure
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
POWERFUL AND RESPONSIVE
400 SERIES EFI ENGINE
A 397cc single-cylinder 2-stroke engine with electronic fuel injection (EFI) offers quicker, more responsive power that gives you a smoother take off every time.
UNMATCHED CONTROL
ALPHA ONE SINGLE-BEAM REAR SUSPENSION
ALPHA ONE Suspension is the only single-beam rear suspension in the industry, providing enhanced agility in deep snow. The lightweight, single-beam design provides nimble action, allowing riders to maneuver the sled and carve tighter circles with less effort than conventional, dual-rail snowmobiles.
PROVEN SUSPENSION
ARCTIC MOUNTAIN SUSPENSION
AMS™ 37 Front Suspension is built to deliver confident performance in deep snow, combining lightweight spindles with precision-engineered suspension geometry for responsive control and maneuverability. Forged-aluminum spindles reduce drag while maintaining predictable handling in variable conditions. Paired with hydraulic twin-tube shocks and durable dual-phase alloy-steel A-arms, AMS provides smooth bump absorption and reliable performance when deep snow demands more from your sled.
LIGHT AND NIMBLE
MID-SIZE CHASSIS
The M 400 mid-sized chassis is extremely lightweight, making it agile and easy to handle, no matter your skill level. With a lightweight mountain seat and a short tank, this sled makes transferring weight while cornering effortless.
SMOOTH POWER DELIVERY
ARCTIC DRIVE SYSTEM
The lightweight, low-maintenance Arctic Cat M Belt Drive System has a CVTech Trailbloc drive clutch and CVTech Invance driven clutch to deliver power to the snow. It also provides more low-end power and throttle control, which is needed when navigating deep snow.
EASIER STEERING
G2 PROCLIMB SKIS
The lightweight G2 ProClimb™ 7-inch Mountain Ski is tapered to stay on top of the snow. The ski works in tandem with the AMS spindles for easier steering and better deep snow performance.
EASILY ACCESS INFORMATION
STANDARD DISPLAY
Everything you need to know is now in one place. Be fully aware of essential vehicle data with this easy-to-read, digital display.
Specifications
| MODEL | M 400 ALPHA ONE |
| Engine | |
| Engine Type | 2-Stroke |
| Displacement | 397cc |
| Cooling | Liquid |
| Cylinders | 1 |
| Bore x Stroke | 85 x 70 mm |
| Lubrication | Electronic Injection |
| Ignition | Digitally Controlled CDI |
| Engine Stator Output | 270W @ 3000 RPM |
| Fuel Delivery | Electronic Fuel Injected (EFI) |
| Exhaust | APV with tuned pipe, pipe sensor, manifold and stainless steel muffler |
| Fuel Capacity | 10.4 gal |
| Oil System Capacity | 3.25 qt |
| Coolant System Capacity | 5.0 qt |
| Minimum Octane | 91 |
| Powertrain | |
| Drive Clutch | CVTech Trailbloc |
| Driven Clutch | CVTech Invance |
| Drive System | Arctic Drive System |
| Brakes | Stealth Hydraulic Master Cylinder |
| Clutch Calibration | 0-5,000 ft |
| Gearing | 19/50 |
| Chain Pitch | 90 |
| Track Drive Sprocket | 7 Tooth, 2.86 Pitch, Involute |
| Reverse | Push-button Engine |
| Suspension | |
| Front Suspension | Arctic Mountain Suspension (AMS) |
| Ski Shocks | Hydraulic Twin Tube |
| Sway Bar | NA |
| Front Travel | 8.3 in |
| Rear Suspension | ALPHA-ONE Rear Suspension |
| Front Track Shock | Hydraulic Twin Tube |
| Rear Track Shock | Hydraulic Twin Tube |
| Rear Travel | 14.75 in |
| Dimensions | |
| Overall Chassis Length | 128 in |
| Overall Chassis Width | 42.5-44.5 in |
| Overall Chassis Height | 48 in |
| Track Type | Challenger |
| Track Width | 15 in |
| Track Length | 146 in |
| Lug | 2.00 in |
| Pitch | 2.86 in |
| Ski Stance | 35.5-37.5 in - Adjustable |
| Ski Type/Width | G2 ProClimb - 7 in |
| Runner Type | Single Runner |
| Instrumentation | |
| Type of Gauge | Standard |
| Speedometer | Digital |
| Tachometer | Digital |
| Odometer | Digital |
| Fuel | Digital |
| Oil | Indicator Light |
| Coolant | Indicator Light |
| Clock | NA |
| Battery Voltage | NA |
| Altimeter | NA |
| Hours | Digital |
| Features | |
| Color | Black |
| Heat Exchanger | Front/Long tunnel |
| Starter | Turnkey Electric Start |
| Handlebars | Hooked w/grab handle |
| Lighting | Halogen 1-Bulb |
| Seating | Lightweight Mountain |
| Standard Accessories | Hand & Thumb Warmers, Standard Brake Disc, Standard Steering, Tether Switch |
| Windshield | 4" Low |
Vehicle specifications are subject to change.
